| 8缸船用主机 Marine main engine | | | | |
| 项目Items | 单位Unit | | | |
| 系列Series | G32 | |||
| 型号Model | 8G32 | 8G32A | ||
| 功率Power | kW/Ps | 3552/4800 | 3906/5310 | |
| 转速Speed | rpm | 600 | 600 | |
| 缸径Bore | mm | 320 | 320 | |
| 冲程Stroke | mm | 480 | 480 | |
| 活塞平均速度 Mean piston speed | m/s | 9.6 | 9.6 | |
| 平均有效压力 BMEP | MPa | 2.3 | 2.53 | |
| 燃油(气)消耗率Fuel consumption | 100%MCR | g/kWh | 181 | 181 |
| 85%MCR | 179 | 179 | ||
| 润滑油消耗率Lube oil consumption | g/kWh | 0.8 | 0.8 | |

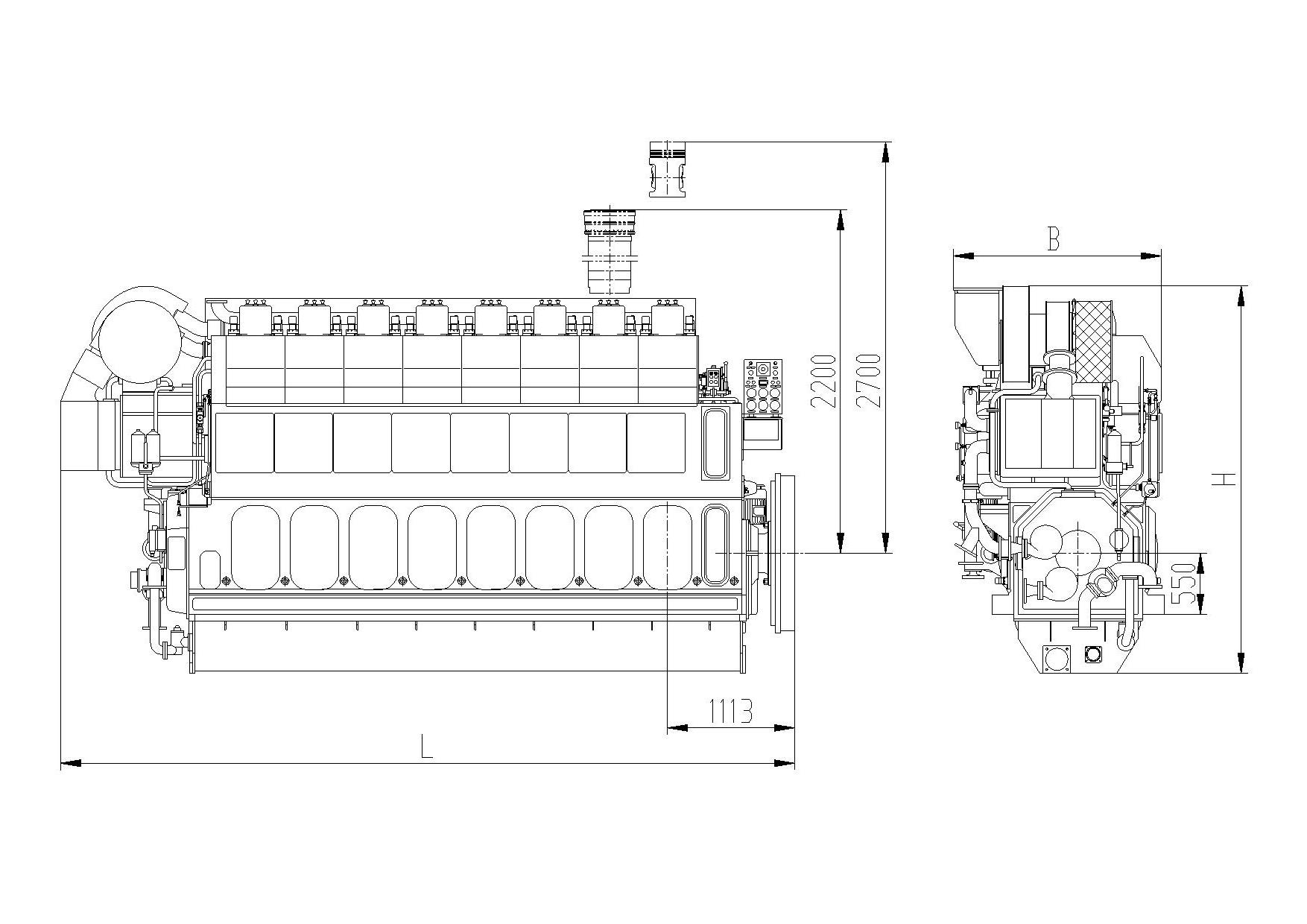

| 外形尺寸 Outline dimension （长×宽×高）(L×B×H) | mm | 6727×1904×3455 | 6727×1904×3455 | |
| 重量 Weight | kg | 4600 | 4600 | |
| 双主机安装最小中心距离 | mm | 2750 | 2750 | |
| 证书 | CCS/GL/NK/BV | CCS/GL/NK/BV | ||
| 燃料类型Fuel type | 380cSt/50℃ HFO | 380cSt/50℃ HFO | ||
| | | | | |
| 说明Explantions： | | | | |
| 1、各型号发动机的供货范围，按相应技术文件执行。 | | | | |
| The delivery scope for each model engines shall be performed as per the corresponding technical files. | ||||
| 2、所有机型均可满足IMO TireⅡ的要求。 | | | | |
| All the model engines can meet IMO Tire Ⅱ requirements. | | | | |
